| 产品名称： |
Posi-lock Milling Collet Chunk, VC-SERIES POSI-LOCK主體/套裝夾具組 |
|
 |
|
|
| ORDER NO. |
 |
TAPER |
|
DRAW BAR |
|
COLLET SIZE |
|
COLLET PCS |
|
WEIGHT |
|
SIZE |
|
CODE NO. |
|
Inquriy |
 |
|
VC-115 |
|
MT2 |
|
1.M10X1.5 2. 3/8"-16 |
|
|
|
|
|
0.7 |
|
|
|
3203-001 |
|
Inquriy |
 |
|
VC-116 |
|
MT3 |
|
1.M12X1.75 2. 3/8"-16 3. 3/8"-16 4. 1/2"-12 |
|
|
|
|
|
0.9 |
|
|
|
3203-002 |
|
Inquriy |
|
|
VC-117 |
|
MT4 |
|
1.M16X2.0P 2. 5/8"-11 |
|
|
|
|
|
1 |
|
|
|
3203-003 |
|
Inquriy |
|
|
VC-118 |
|
R8 |
|
1. 7/16"-20UNF |
|
|
|
|
|
1 |
|
|
|
3203-004 |
|
Inquriy |
|
|
VC-123 |
|
NT30 |
|
1.M12X1.75 2. 1/2"-12 |
|
|
|
|
|
1 |
|
|
|
3203-005 |
|
Inquriy |
|
|
VC-124 |
|
NT40 |
|
1.M16X2.0 2. 5/8"-11 |
|
|
|
|
|
1.2 |
|
|
|
3203-006 |
|
Inquriy |
|
|
VC-125 |
|
NT50 |
|
1.M24X3.0 2. 1"-8 |
|
|
|
|
|
3 |
|
|
|
3203-007 |
|
Inquriy |
|
|
VC-101 |
|
MT2 |
|
1.M10X1.5P 2. 3/8"-16 |
|
METRIC |
|
4 |
|
1.8 |
|
|
|
3203-101 |
|
Inquriy |
|
|
VC-101I |
|
MT2 |
|
1.M10X1.5P 2. 3/8"-16 |
|
INCH |
|
4 |
|
1.8 |
|
|
|
3203-102 |
|
Inquriy |
|
|
VC-101A |
|
MT2 |
|
1.M10X1.5P 2. 3/8"-16 |
|
MM+INCH |
|
8 |
|
2.3 |
|
|
|
3203-103 |
|
Inquriy |
|
|
VC-102 |
|
MT3 |
|
1.M10X1.5P 2.M12X1.75 3. 3/8"-16 4. 1/2"-12 |
|
METRIC |
|
4 |
|
2 |
|
|
|
3203-104 |
|
Inquriy |
|
|
VC-102I |
|
MT3 |
|
1.M10X1.5P 2.M12X1.75 3. 3/8"-16 4. 1/2"-12 |
|
INCH |
|
4 |
|
2 |
|
|
|
3203-105 |
|
Inquriy |
|
|
VC-102A |
|
MT3 |
|
1.M10X1.5P 2.M12X1.75 3. 3/8"-16 4. 1/2"-12 |
|
MM+INCH |
|
8 |
|
5 |
|
|
|
3203-106 |
|
Inquriy |
|
|
VC-103 |
|
MT4 |
|
1.M16X2.0P 2. 5/8"-11 |
|
METRIC |
|
4 |
|
2 |
|
|
|
3203-107 |
|
Inquriy |
|
|
VC-103I |
|
MT4 |
|
1.M16X2.0P 2. 5/8"-11 |
|
INCH |
|
4 |
|
2 |
|
|
|
3203-108 |
|
Inquriy |
|
|
VC-103A |
|
MT4 |
|
1.M16X2.0P 2. 5/8"-11 |
|
MM+INCH |
|
8 |
|
2.5 |
|
|
|
3203-109 |
|
Inquriy |
|
|
VC-104 |
|
R8 |
|
1.7/16"-20UNF |
|
METRIC |
|
4 |
|
2.2 |
|
|
|
3203-110 |
|
Inquriy |
|
|
VC-104I |
|
R8 |
|
1.7/16"-20UNF |
|
INCH |
|
4 |
|
2 |
|
|
|
3203-111 |
|
Inquriy |
|
|
VC-104A |
|
R8 |
|
1.7/16"-20UNF |
|
MM+INCH |
|
8 |
|
2.5 |
|
|
|
3203-112 |
|
Inquriy |
|
|
VC-105 |
|
NT30 |
|
1.M12X1.75P 2. 1/2"-12 |
|
METRIC |
|
4 |
|
2 |
|
|
|
3203-113 |
|
Inquriy |
|
|
VC-105I |
|
NT30 |
|
1.M12X1.75P 2. 1/2"-12 |
|
INCH |
|
4 |
|
2 |
|
|
|
3203-114 |
|
Inquriy |
|
|
VC-105A |
|
NT30 |
|
1.M12X1.75P 2. 1/2"-12 |
|
MM+INCH |
|
8 |
|
2.5 |
|
|
|
3203-115 |
|
Inquriy |
|
|
VC-106 |
|
NT40 |
|
1.M16X2.0P 2. 5/8"-11 |
|
METRIC |
|
4 |
|
2.3 |
|
|
|
3203-116 |
|
Inquriy |
|
|
VC-106I |
|
NT40 |
|
1.M16X2.0P 2. 5/8"-11 |
|
INCH |
|
4 |
|
2.3 |
|
|
|
3203-117 |
|
Inquriy |
|
|
VC-106A |
|
NT40 |
|
1.M16X2.0P 2. 5/8"-11 |
|
MM+INCH |
|
8 |
|
2.8 |
|
|
|
3203-118 |
|
Inquriy |
|
|
VC-107 |
|
NT50 |
|
1.M24X3.0P 2. 1"-8 |
|
METRIC |
|
4 |
|
4.3 |
|
|
|
3203-119 |
|
Inquriy |
|
|
VC-107I |
|
NT50 |
|
1.M24X3.0P 2. 1"-8 |
|
INCH |
|
4 |
|
4.3 |
|
|
|
3203-120 |
|
Inquriy |
|
|
VC-107A |
|
NT50 |
|
1.M24X3.0P 2. 1"-8 |
|
MM+INCH |
|
8 |
|
4.8 |
|
|
|
3203-121 |
|
Inquriy |
|
|
PLI-1/4 |
|
|
|
|
|
|
|
|
|
0.09kg |
|
1/4" |
|
3203-130 |
|
Inquriy |
|
|
PLI-3/8 |
|
|
|
|
|
|
|
|
|
0.09kg |
|
3/8" |
|
3203-131 |
|
Inquriy |
|
|
PLI-1/2 |
|
|
|
|
|
|
|
|
|
0.09kg |
|
1/2'' |
|
3203-132 |
|
Inquriy |
|
|
PLI-5/8 |
|
|
|
|
|
|
|
|
|
0.09kg |
|
5/8'' |
|
3203-133 |
|
Inquriy |
|
|
PLM-6 |
|
|
|
|
|
|
|
|
|
0.09kg |
|
6mm |
|
3203-134 |
|
Inquriy |
|
|
PLM-10 |
|
|
|
|
|
|
|
|
|
0.09kg |
|
10mm |
|
3203-135 |
|
Inquriy |
|
|
PLM-12 |
|
|
|
|
|
|
|
|
|
0.09kg |
|
12mm |
|
3203-136 |
|
Inquriy |
|
|
PLM-16 |
|
|
|
|
|
|
|
|
|
0.09kg |
|
16mm |
|
3203-137 |
|
Inquriy |
|
|
VC-111 |
|
|
|
|
|
4pcs-6,10,12,16mm |
|
|
|
0.36 |
|
|
|
3203-200 |
|
Inquriy |
|
|
VC-112 |
|
|
|
|
|
4pcs-1/4",3/8",1/2",5/8" |
|
|
|
0.36 |
|
|
|
3203-201 |
|
Inquriy |
|
|
VC-113 |
|
|
|
|
|
8pcs-6,10,12,16mm,1/4",3/8",1/2",5/8" |
|
|
|
0.72 |
|
|
|
3203-202 |
|
Inquriy |
| |
|

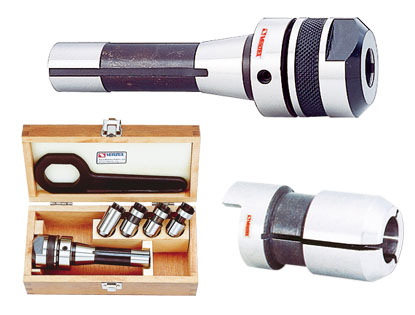

POSI-LOCK MILLING COLLET CHUCK KIT
Including Collet Chuck, Full Set of Collets and Wrench
Compact design for maximum clearance.
Gradual collet taper for powerful clamping action over entire collet.
Fast & simple tool changing. | | |
|
|
