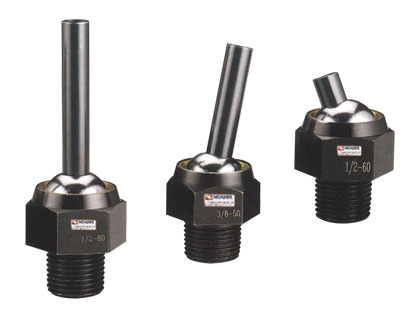

High Pressures Adjustable Nozzle, VPN-SERIES |
|
 |
|
|
|
|
The nozzle;s angle can be adjusted to meet operating needs, and the nozzle can be fixed in place to ensure it is accuracy aimed at the workpiece.
Extremely easy to operate.
Suitable for all types of high-, medium-, and low-pressure cooling fluids.
Can be used on CNC processing machines, CNC lathes, milling machines, grinding machines, and all other kinds of machine tools.
It can enhance processing eficiency and precision, while cutting costs |
| ORDER NO. |
SPECIFICATIONS |
MAJOR SIZE |
| D |
THREAD(S) |
L |
L1 |
D1 |
B1 |
HEXAGRAM(B) |
| VPN-8120 |
1/8" PT-Ø4×20L |
4 |
PT 1/8 |
20 |
10 |
6 |
6 |
17 |
| VPN-8140 |
1/8" PT-Ø4×40L |
4 |
PT 1/8 |
40 |
10 |
6 |
6 |
17 |
| VPN-8160 |
1/8" PT-Ø4×60L |
4 |
PT 1/8 |
60 |
10 |
6 |
6 |
17 |
| VPN-4120 |
1/4" PT-Ø4×20L |
4 |
PT 1/4 |
20 |
10 |
6 |
6 |
17 |
| VPN-4140 |
1/4" PT-Ø4×40L |
4 |
PT 1/4 |
40 |
10 |
6 |
6 |
17 |
| VPN-4160 |
1/4" PT-Ø4×60L |
4 |
PT 1/4 |
60 |
10 |
6 |
6 |
17 |
| VPN-8330 |
3/8" PT-Ø6×30L |
6 |
PT 3/8 |
30 |
13 |
8 |
10 |
24 |
| VPN-8350 |
3/8" PT-Ø6×50L |
6 |
PT 3/8 |
50 |
13 |
8 |
10 |
24 |
| VPN-8370 |
3/8" PT-Ø6×70L |
6 |
PT 3/8 |
70 |
13 |
8 |
10 |
24 |
| VPN-2140 |
1/2" PT-Ø8×40L |
8 |
PT 1/2 |
40 |
18 |
10 |
12 |
32 |
| VPN-2160 |
1/2" PT-Ø8×60L |
8 |
PT 1/2 |
60 |
18 |
10 |
12 |
32 |
| VPN-2180 |
1/2" PT-Ø8×80L |
8 |
PT 1/2 |
80 |
18 |
10 |
12 |
32 |
| VPN-1015 |
M10×1.25P×Ø4×15L |
4 |
M10×1.25P |
15 |
10 |
6 |
6 |
17 |
| VPN-1020 |
M10×1.25P×Ø4×20L |
4 |
M10×1.25P |
20 |
10 |
6 |
6 |
17 |
| VPN-1040 |
M10×1.25P×Ø4×40L |
4 |
M10×1.25P |
40 |
10 |
6 |
6 |
17 |
| VPN-1060 |
M10×1.25P×Ø4×60L |
4 |
M10×1.25P |
60 |
10 |
6 |
6 |
17 |
| VPN-2030 |
M20×1.5P×Ø6×30L |
6 |
M20×1.5P |
30 |
13 |
8 |
10 |
24 |
| VPN-2050 |
M20×1.5P×Ø6×50L |
6 |
M20×1.5P |
50 |
13 |
8 |
10 |
24 |
| VPN-2070 |
M20×1.5P×Ø6×70L |
6 |
M20×1.5P |
70 |
13 |
8 |
10 |
24 |
| VPN-2440 |
M24×2.0P×Ø8×40L |
8 |
M24×2.0P |
40 |
18 |
10 |
12 |
32 |
| VPN-2460 |
M24×2.0P×Ø8×60L |
8 |
M24×2.0P |
60 |
18 |
10 |
12 |
32 |
| VPN-2480 |
M24×2.0P×Ø8×80L |
8 |
M24×2.0P |
80 |
18 |
10 |
12 |
32 | | | |
|
|
