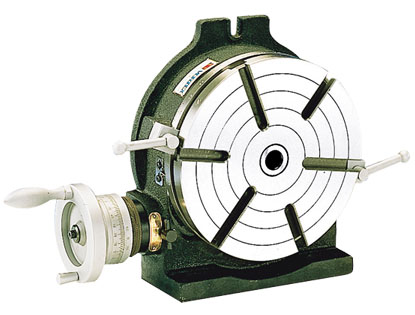

VERTEX Horizontal,Vertical Rotary Table,HV-6,8,10,12,14,16,台灣鷹牌橫立兩用分度盤


ORDER NO. Meas.CFT CODE NO.
Inquriy
HV-4
0.3
1001-000
Inquriy
HV-6
0.4
1001-001
Inquriy
HV-8
0.8
1001-002
Inquriy
HV-10
2
1001-003
Inquriy
HV-12
2.6
1001-004
Inquriy
HV-14
3.2
1001-005
Inquriy
HV-16
4.2
1001-006
Inquriy

VERTEX Horizontal,Vertical Rotary Table,HV-6,8,10,12,14,16,WITH face plate

台灣鷹牌 橫立兩用分度盤

FEATURES:

1. Our Tables are made of high density Meehanite and use "HEIDENHAIN" electronic equipment to inspect angle to assure the excellent quality and durableness.
2. Use excellent machining center to process. Spindle end be applied accuracy bearing. Can be assured to keep very steady under load cutting.
3. Worm is hardened and ground. The ratio is 90:1. The work table is graduateda full 360° so that one turn of the handle moves the table through 4°. Micro collar is graduated in steps of 1'min. And vernier scale makes settings down to 10 seconds possible.
4. These Rotary Tables are popular for their excellent perfor-mance, practical design and reasonable cost. They are widely used for circular cutting work, angle setting, boring, spot-facing and similar work.
5. Using the Key guide block, the center can be corrected quickly and accurately.
ITEM NO. TESTING OBJECTIVE VARIATION(INCHES)(MM) MAXIMUM TESTED
1 FLATNESS OF CLAMPING SURFACE(CONCAVE) .0006(0.015)
2 PARALLELISM OF CLAMPING SURFACE TO BASE .0008(0.0.02)
3 SQUARENESS OF CLAMPING SURFACE TO ANGLE FACE .0008(0.0.02)
4 TRUE RUNNING OF CLAMPING SURFACE .0006(0.015)
5 TURE RUNNING OF CENTER HOLE MEASURED AT HOLE EDGE .0008(0.0.02)
6 INDEXING ACCURACY OF DIRECT INDEXING MECHANISM MAXIMUM CUMULATIVE SPACING ERROR 45"

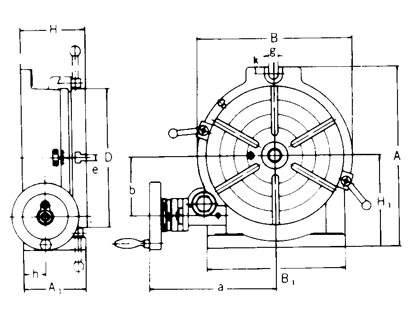

ORDER NO. Table Base dimension Bolt slots The Load Capacity For Rotary Table Center sleeve Gross Weight kg/lb
Outer diamensions Height
A1 D H H1 A B g Horizontal Vertical
HV-4 70 110 80 85 145 115 12 35KGS 18KGS MT-2 (C)7.5
HV-6 78
3.07
150
5.91
80
3.11
100
3.94
200
7.87
160
6.30
15
0.59
40KGS 20KGS MT-2 (C)13
HV-8 100
3.94
200
7.87
105
4.13
135
5.31
265
10.43
220
8.66
17
0.67
80KGS 40KGS MT-3 (C)26
HV-10 110
4.33
250
9.84
115
4.53
165
6.50
325
12.80
280
11.02
17
0.67
90KGS 50KGS MT-3 (C)37
HV-12 130
5.12
300
11.81
135
5.32
195
7.68
388
15.27
330
12.99
18
0.71
120KGS 60KGS MT-4 (C)70
HV-14 150
5.12
350
13.78
140
5.51
230
9.03
450
17.72
380
14.95
18
0.71
130KGS 70KGS MT-4 (C)92
HV-16 150
5.90
406
15.98
155
6.10
255
10.03
500
16.69
430
16.93
18
0.71
140KGS 60KGS MT-4 (C)122

(W) wooden case; (C) Caron BOX 橫立兩用分度盤
